SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Blower Motor Speed Control

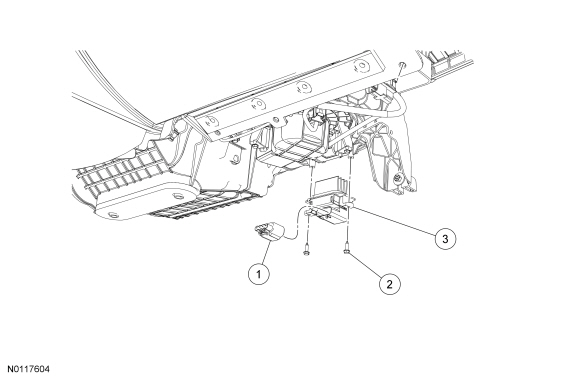

Item Part Number Description
1 — Blower motor speed control electrical connector (part of 18B574)
2 W701696 Blower motor speed control screw (2 required)
3 19E624 Blower motor speed control

Removal and Installation

  1. Disconnect the blower motor speed control electrical connector.
  1. Remove the 2 blower motor speed control screws.
  1. Remove the blower motor speed control.
  1. To install, reverse the removal procedure.
