SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Cabin Air Filter

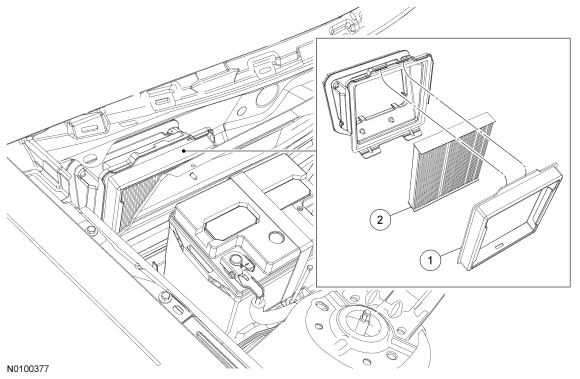

Item Part Number Description
1 6302184 Cabin air filter housing
2 19N619 Cabin air filter

Removal and Installation

  1. Remove the RH cowl vent screen. For additional information, refer to Section 501-02 .
  1. Using a suitable tool, detach the cabin air filter housing from the fresh air inlet duct.
  1. Remove the cabin air filter housing.
  1. Remove the cabin air filter.
  1. To install, reverse the removal procedure.
