SECTION 412-01: Climate Control	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Condenser Core

Material
Item	Specification
Motorcraft® PAG Refrigerant Compressor Oil YN-12-D	WSH-M1C231-B

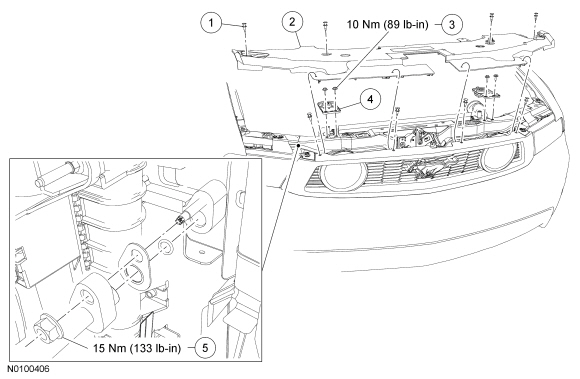

Item	Part Number	Description
1	W705436	Upper radiator air deflector pin-type retainer (8 required)
2	8C291	Upper radiator air deflector
3	W707257	Radiator bracket bolt (4 required)
4	8A193	Radiator bracket (2 required)
5	W520413	Condenser inlet fitting nut

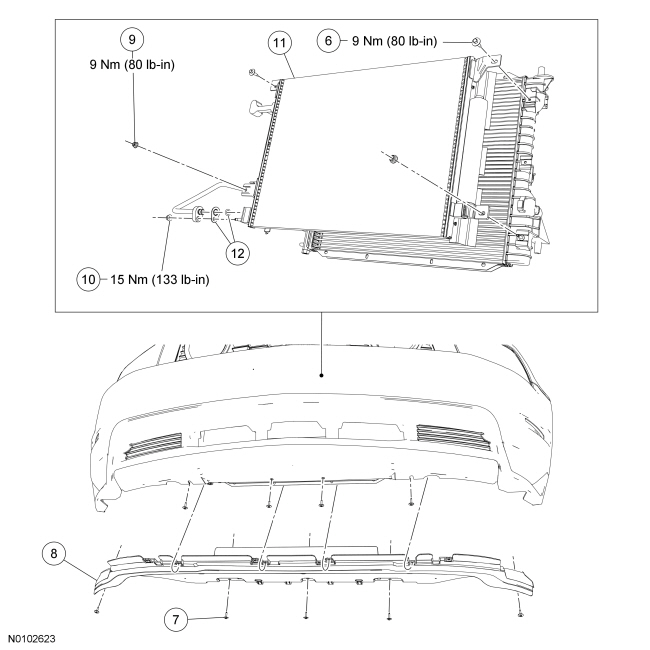

Item	Part Number	Description
6	W704652	Upper condenser bolt (2 require)
7	N801169	Lower radiator air deflector screw (9 required)
8	17626	Lower radiator air deflector
9	W520101	Lower condenser nut (2 required)
10	W520413	Condenser outlet fitting nut
11	19712	Condenser core
12	19B596	O-ring seal and gasket seal kit (2 required)

Removal and Installation

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

Recover the refrigerant. For additional information, refer to Section 412-00 .

Remove the 8 upper radiator air deflector pin-type retainers and remove the air deflector.

3.7L and 5.0L (4V) vehicles

Remove the Air Cleaner (ACL) housing and ACL inlet pipe. For additional information, refer to Section 303-12 .

5.8L (4V) vehicles

Remove the 2 degas bottle bolts and position the degas bottle aside.

All vehicles

Remove the 4 upper radiator bracket bolts and the 2 upper radiator brackets.
- To install, tighten to 10 Nm (89 lb-in).

Remove the condenser inlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).

NOTE: The radiator must be positioned rearward to access the 2 upper condenser bolts.
Remove the 2 upper condenser bolts.
- To install, tighten to 9 Nm (80 lb-in).

Remove the 9 lower radiator air deflector screws and the lower radiator air deflector.

Remove the condenser outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).

Remove the 2 lower condenser nuts.
- To install, tighten to 9 Nm (80 lb-in).

NOTE: The condenser core must be removed from below the vehicle.
Remove the condenser core.

To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.
- Add the correct amount of clean PAG oil to the refrigerant system. For additional information, refer to the Refrigerant Oil Adding procedure in Section 412-00 .

Evacuate, leak test and charge the refrigerant system. For additional information, refer to Section 412-00 .
