SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Heating Ventilation Air Conditioning (HVAC) Module

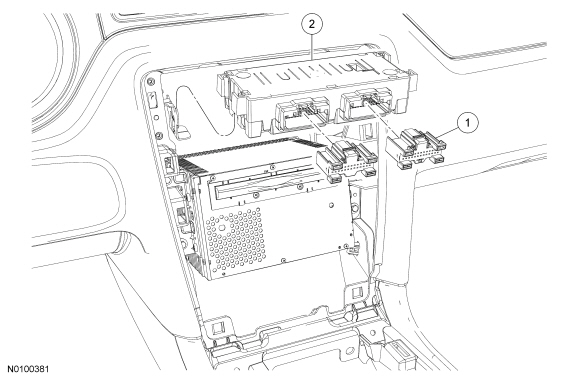

Item Part Number Description
1 — HVAC module electrical connector (part of 14401)
2 19980 HVAC module

Removal and Installation

  1. Remove the Front Display Interface Module (FDIM). For additional information, refer to Section 415-00 .

  1. NOTE: Vehicles equipped with Electronic Automatic Temperature Control (EATC) have 2 HVAC module electrical connectors. Vehicles equipped with Electronic Manual Temperature Control (EMTC) have 1 HVAC module electrical connector.

    Disconnect the 2 HVAC module electrical connector(s).
  1. Release the HVAC module retaining clips and remove the HVAC module.

  1. NOTE: Be sure that all HVAC module electrical connectors are securely fastened before installing the center instrument panel finish panel.

    To install, reverse the removal procedure.
