SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

In-Vehicle Temperature Sensor

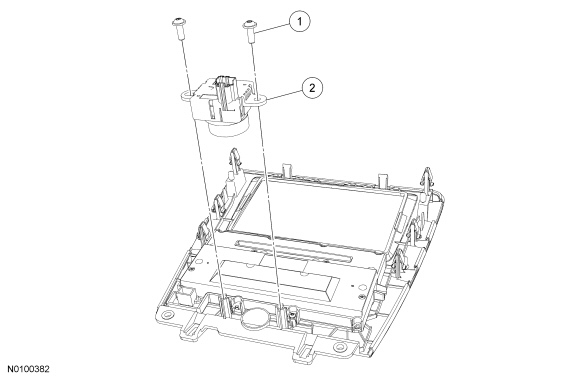

Item Part Number Description
1 W712934 In-vehicle temperature sensor screw (2 required)
2 19C734 In-vehicle temperature sensor

Removal and Installation

  1. Remove the center instrument panel finish panel. For additional information, refer to Section 501-12 .
  1. Remove the 2 in-vehicle temperature sensor screws.
  1. Remove the in-vehicle temperature sensor.
  1. To install, reverse the removal procedure.
