SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Mode Door Actuator — Air Inlet Door

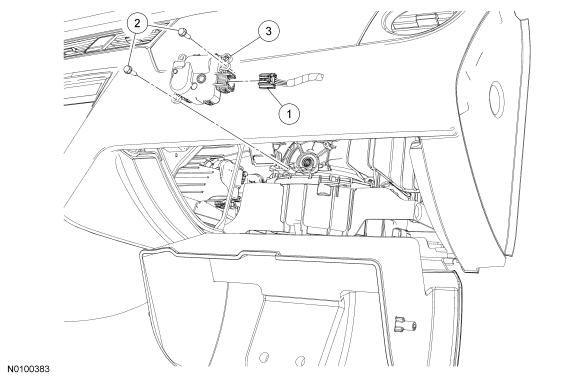

Item Part Number Description
1 — Air inlet mode door actuator electrical connector (part of 18B574)
2 W701696 Air inlet mode door actuator screw (3 required)
3 19E616 Air inlet mode door actuator

Removal and Installation

  1. Lower the glove compartment.
  1. Disconnect the air inlet mode door actuator electrical connector.
  1. Remove the 3 air inlet mode door actuator screws.
  1. Remove the air inlet mode door actuator.
  1. To install, reverse the removal procedure.
  1. To verify correct operation, press the RECIRC button and allow 10 seconds for the air inlet mode door to reach the selected position.
