SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Mode Door Actuator — Floor Door

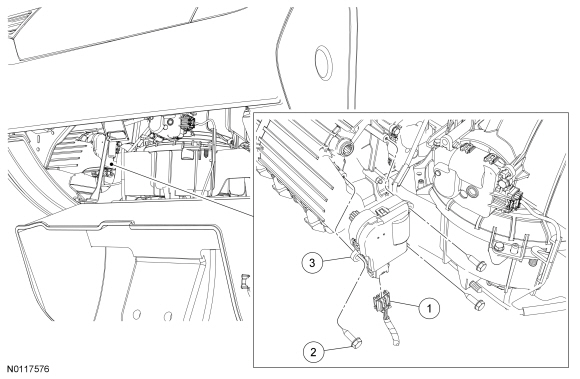

Item Part Number Description
1 — Floor door mode door actuator electrical connector (part of 18B574)
2 W701696 Floor door mode door actuator screw (3 required)
3 19E616 Floor door mode door actuator

Removal and Installation

  1. Lower the glove compartment.
  1. Disconnect the floor door mode door actuator electrical connector.
  1. Remove the 3 floor door mode door actuator screws.
  1. Remove the floor door mode door actuator.
  1. To install, reverse the removal procedure.

NOTE: The purpose of the module actuator position calibration is to allow the HVAC module to reinitialize and calibrate the actuator stop points. To carry out calibration, carry out the following steps.

  1. Remove the Smart Junction Box (SJB) fuse 15 for at least one minute.

  1. NOTE: When the ignition switch is switched to the ON position, the HVAC module will initialize and calibrate the actuators. Calibration of the actuators will take approximately 30 seconds.

    Reinstall SJB fuse 15. Turn the ignition switch to the ON position and wait 30 seconds before verifying correct FLOOR mode operation.
