SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Mode Door Actuator — Panel/Defrost Door

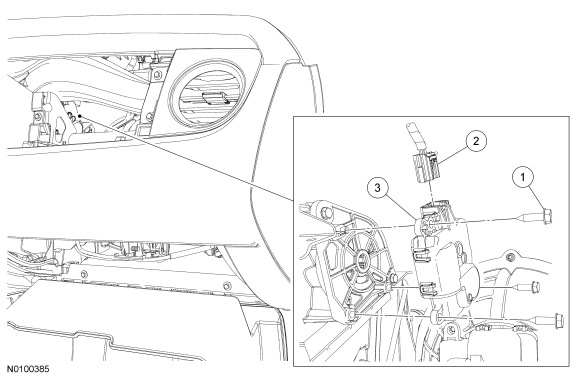

Item Part Number Description
1 W701696 Panel/defrost door mode door actuator screw (3 required)
2 — Panel/defrost door mode door actuator electrical connector (part of 14401)
3 19E616 Panel/defrost door mode door actuator

Removal and Installation

  1. Remove the passenger airbag module. For additional information, refer to Section 501-20B .
  1. Remove the 3 panel/defrost door mode door actuator screws.
  1. Reposition the panel/defrost door mode door actuator and disconnect the panel/defrost door mode door actuator electrical connector.
  1. Remove the panel/defrost door mode door actuator.
  1. To install, reverse the removal procedure.

  1. NOTE: Because the battery is disconnected as part of the passenger airbag module removal procedure, the HVAC module will initialize and calibrate the actuators when the ignition is cycled to the ON position. Calibration of the actuators will take approximately 30 seconds.

    Cycle the ignition switch to the ON position and wait 30 seconds before verifying correct panel/defrost door mode door actuator operation.
