SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Plenum Chamber

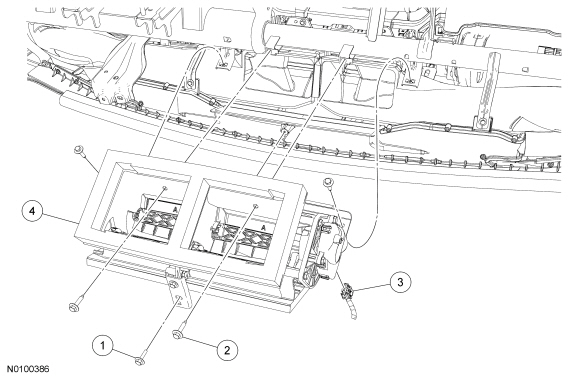

Item Part Number Description
1 W707607 Plenum chamber bracket screw
2 W710506 Plenum chamber screw (4 required)
3 — Panel/defrost door mode door actuator electrical connector (part of 14401)
4 18471 Plenum chamber

Removal and Installation

  1. Remove the instrument panel. For additional information, refer to Section 501-12 .
  1. Remove the plenum chamber bracket screw.
  1. Remove the 4 plenum chamber screws.
  1. Disconnect the panel/floor door mode door actuator electrical connector.
  1. Remove the plenum chamber.
  1. To install, reverse the removal procedure.
