SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Register — Center

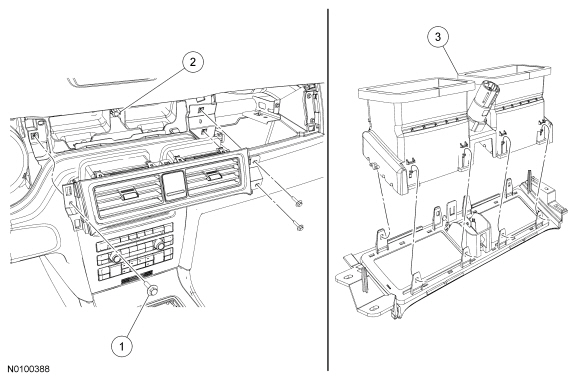

Item Part Number Description
1 W705314 Center register trim panel screw (3 required)
2 — Power point electrical connector (part of 14401)
3 19893 Center register assembly

Removal and Installation

  1. Remove the instrument cluster finish panel. For additional information, refer to Section 501-12 .
  1. Remove the passenger airbag module. For additional information, refer to Section 501-20B .
  1. Remove the 3 center register trim panel screws.
  1. Disconnect the power point electrical connector.
  1. Release the 8 center register clips and remove the center register assembly.
  1. To install, reverse the removal procedure.
