SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Register — RH

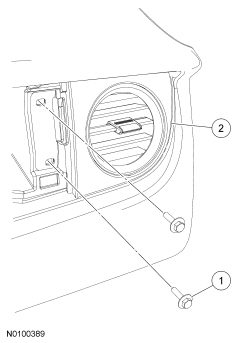

Item Part Number Description
1 W705314 RH register screw
2 19893 RH register assembly

Removal and Installation

  1. Remove the passenger airbag module. For additional information, refer to Section 501-20B .
  1. Remove the 2 RH register screws.
  1. Remove the RH register.
  1. To install, reverse the removal procedure.
