SECTION 413-00: Instrument Cluster and Panel Illumination
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Instrument Panel Dimmer Switch

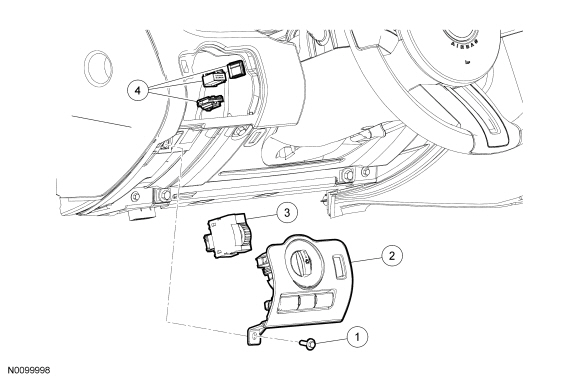

Item Part Number Description
1 W705314 Switch bezel screw
2 7804338 Switch bezel
3 11691 Instrument panel dimmer switch
4 — Electrical connectors (part of 14401)

Removal and Installation

  1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel — Exploded View in Section 501-12 .
  1. Remove the switch bezel screw.
  1. Remove the switch bezel assembly.
  1. Disconnect the electrical connectors
  1. Release the tabs and remove the instrument panel dimmer switch from the switch bezel.
  1. To install, reverse the removal procedure.
