SECTION 413-01: Instrumentation, Message Center, and Warning Chimes
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Instrument Panel Cluster (IPC)

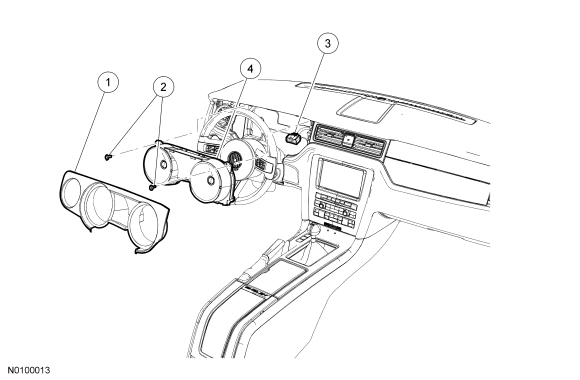

Item Part Number Description
1 011201 Instrument Panel Cluster (IPC) finish panel
2 W705314 IPC screws (2 required)
3 — IPC electrical connector (part of 14401)
4 10849 IPC

Removal and Installation

NOTE: If installing a new Instrument Panel Cluster (IPC), all vehicle keys are erased during the parameter reset procedure. Verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

  1. If installing a new IPC , it is necessary to upload the IPC configuration information to the scan tool. For additional information, refer to Section 418-01 .
  1. Lower the steering column to the lowest position.

  1. NOTE: The IPC finish panel is held in place with retaining clips that are attached to the bezel.

    Pull the IPC finish panel straight out to release the retainers and remove the finish panel.
  1. Remove the 2 screws and pull the IPC straight out to release the retainers at the bottom of the IPC .
  1. If necessary, push the retainers in from the back of the IPC to assist in releasing them.
  1. To install, reverse the removal procedure.

  1. NOTE: If a new IPC is installed, the IPC and the PCM require a parameter reset to allow the IPC and the PCM to recognize each other. Failure to carry out the parameter reset to the IPC and the PCM can result in a no start condition.

    Carry out the parameter reset and key programming procedure. For additional information, refer to Section 419-01B .
