SECTION 413-01: Instrumentation, Message Center, and Warning Chimes
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Message Center Switch

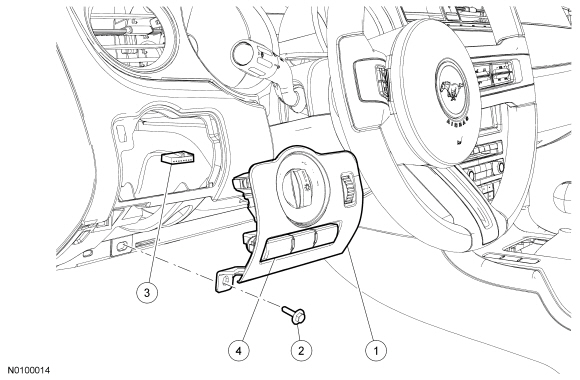

Item Part Number Description
1 7804338 Headlamp switch bezel
2 W705314 Headlamp switch bezel screw
3 — Electrical connector (part of 14401)
4 18578 Message center switch

Removal and Installation

  1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel — Exploded View in Section 501-12 .

  1. NOTE: Remove the headlamp switch by releasing the lower retaining clip and rotating the headlamp switch and bezel out from the bottom first. This assists in releasing the RH upper retaining tab.

    Remove the screw and the headlamp switch bezel.
  1. Press the tabs on the side of the message center switch and remove from the front of the headlamp switch bezel.
  1. To install, reverse the removal procedure.
