SECTION 413-06: Horn
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Horn

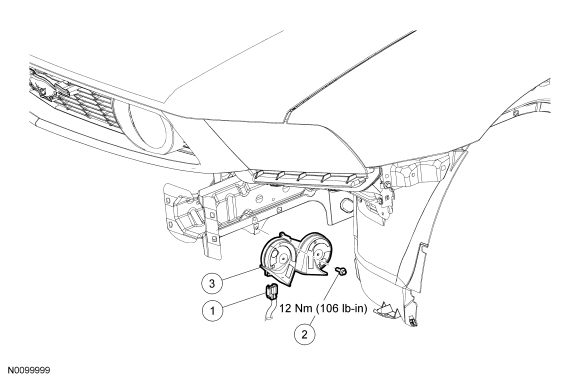

NOTE: Front bumper shown removed for clarity.

NOTE: Vehicle without an external oil cooler shown, vehicle with an external oil cooler similar.


Item Part Number Description
1 — Horn electrical connector (part of 14290)
2 W710500 Horn bolt
3 13832 Horn

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the 9 screws and the lower radiator air deflector.
  1. Disconnect the horn electrical connector.
  1. Remove the bolt and the horn.
  1. To install, reverse the removal procedure.
