SECTION 413-13: Parking Aid
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Video Camera

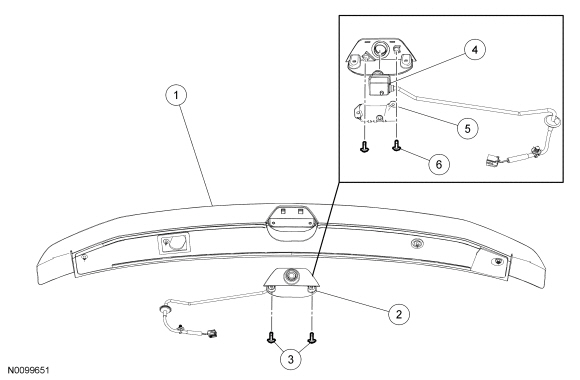

Item Part Number Description
1 — Spoiler
2 — Rear video camera assembly
3 — Rear video camera assembly screws (2 required)
4 19G490 Rear video camera
5 — Rear video camera bracket
6 — Rear video camera bracket screws (2 required)

Removal and Installation

  1. Remove the rear spoiler. For additional information, refer to Section 501-08 .
  1. Remove the 2 screws and the rear video camera assembly away from the rear spoiler.
  1. Remove the 2 screws and the rear video camera bracket.
  1. Remove the video camera.
  1. To install, reverse the removal procedure.
