SECTION 414-00: Charging System
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Generator — 3.7L

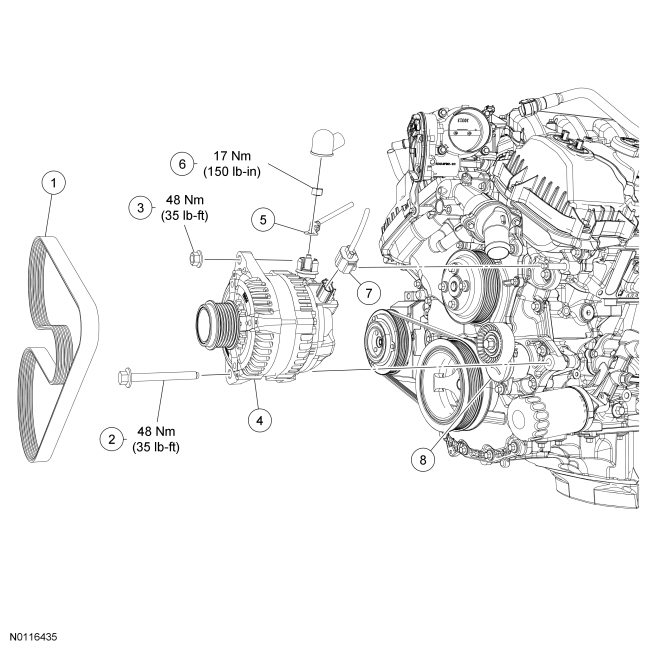

Item Part Number Description
1 8620 Front End Accessory Drive (FEAD) belt
2 W714577 Generator bolt
3 W520414 Generator stud nut
4 10346 Generator
5 — Generator B+ terminal (part of 14B060)
6 W711953 Generator B+ terminal nut
7 — Generator electrical connector (part of 14B060)
8 6B209 FEAD belt tensioner

Removal and Installation

  1. Disconnect the battery. Refer to Section 414-01 .
  1. Rotate the Front End Accessory Drive (FEAD) belt tensioner counterclockwise and position the FEAD belt aside.
  1. Disconnect the generator electrical connector.
  1. Position the generator B+ protective boot aside, remove the B+ nut and position the B+ terminal aside.
  1. Remove the generator stud nut.
  1. Remove the generator bolt and the generator.
  1. To install, reverse the removal procedure.
