SECTION 414-00: Charging System
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

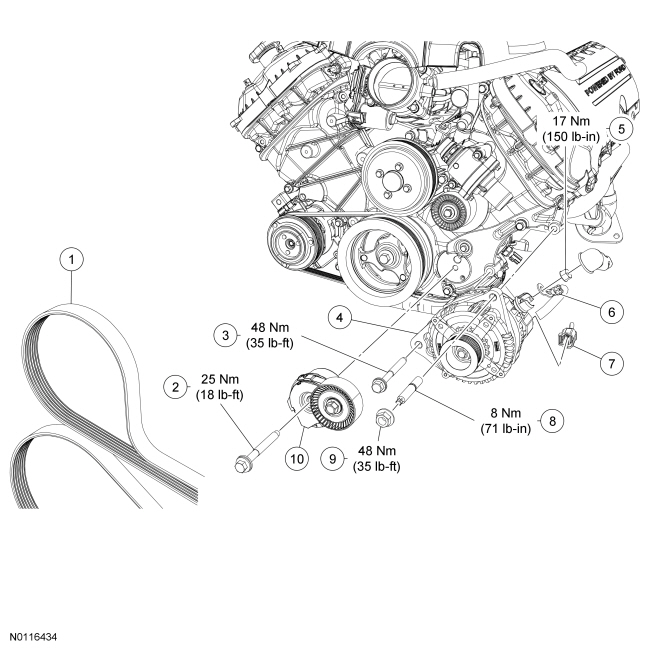

Generator — 5.0L


Item Part Number Description
1 8620 Front End Accessory Drive (FEAD) belt
2 W707288 FEAD belt tensioner bolt
3 W715092 Generator bolt
4 10346 Generator
5 W711953 Generator B+ terminal nut
6 — Generator B+ terminal (part of 14B060)
7 — Generator electrical connector (part of 14B060)
8 W710217 Generator stud
9 W520414 Generator stud nut
10 6B209 FEAD belt tensioner

Removal and Installation

  1. Disconnect the battery. For additional information, refer to Section 414-01 .
  1. Remove the Air Cleaner (ACL) outlet pipe and ACL assembly. For additional information, refer to Section 303-12 .
  1. Remove the ACL inlet pipe from the radiator support. For additional information, refer to Section 303-12 .
  1. Remove the Front End Accessory Drive (FEAD) belt tensioner. For additional information, refer to Section 303-05 .
  1. Position the generator B+ protective boot aside, remove the B+ nut and position the B+ terminal aside.
  1. Disconnect the generator electrical connector.
  1. Remove the upper generator stud nut.
  1. Remove the upper generator stud.
  1. Remove the lower generator bolt and the generator.
  1. To install, reverse the removal procedure.
