SECTION 414-01: Battery, Mounting and Cables
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

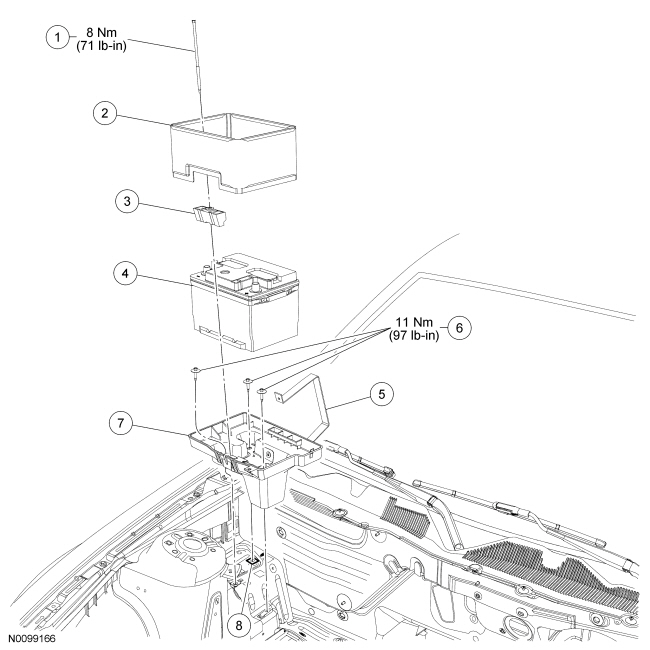

Battery and Battery Tray — Exploded View


Material
Item Specification
Threadlock and Sealer
TA-25 		WSK-M2G351-A5


Item Part Number Description
1 — Battery hold-down clamp bolt (part of 10718)
2 10A687 Battery heat shield (if equipped)
3 10718 Battery hold-down clamp
4 10655 Battery
5 — Battery hold-down strap (part of 10732)
6 W503923 Battery tray bolts (3 required)
7 10732 Battery tray
8 16774 J-clip nut

NOTE: Disconnect the battery. For additional information, refer to Battery Disconnect in this section.

NOTE: For GT500 models, apply threadlock and sealer to the battery tray bolt threads during assembly.

  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
