SECTION 414-01: Battery, Mounting and Cables
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Battery Cables — 3.7L

NOTE: Automatic transmission shown, manual transmission similar. Some items have been removed for clarity.

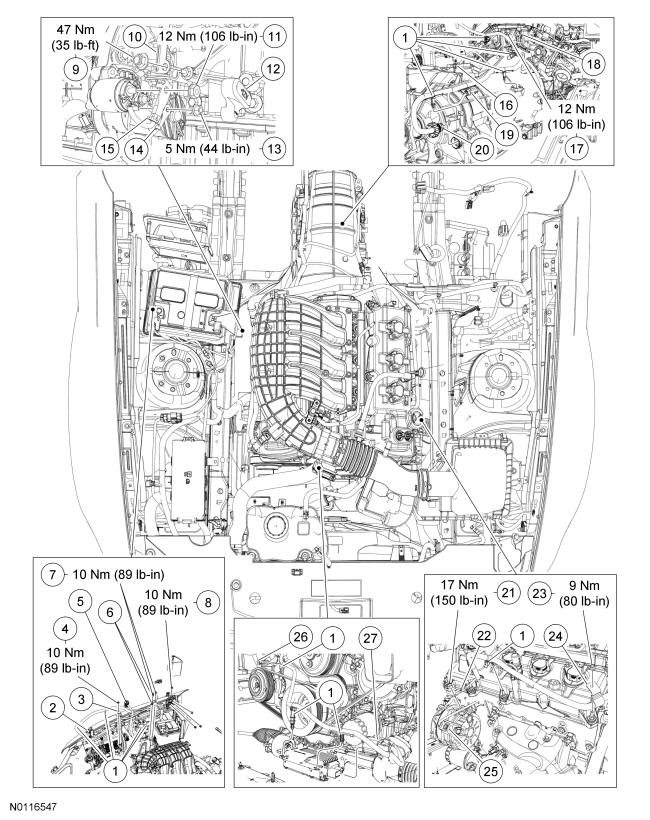

Item Part Number Description
1 — Battery cable harness locator (part of 14B060)
2 — PCM harness connector (part of 14B060)
3 — Battery Junction Box (BJB) terminal (part of 14B060)
4 W705764 BJB terminal nut
5 — Engine control harness connector (part of 14B060)
6 — Battery ground cable body terminal (part of 14B060)
7 W712583 Battery ground cable body terminal bolt
8 W705764 Battery cable terminal nut
9 W520103 Battery cable harness bracket-to-engine block nut
10 — Battery cable harness bracket (part of 14B060)
11 W706414 Starter solenoid positive cable terminal nut
12 11N087 Starter solenoid terminal cover
13 W705790 Starter solenoid wire terminal nut
14 — Starter solenoid wire terminal (part of 14B060)
15 — Starter solenoid positive cable terminal (part of 14B060)
16 — Catalyst Monitor Sensor (CMS) connector (left side) (part of 14B060)
17 W705661 Battery ground cable-to-head terminal bolt
18 — Battery ground cable-to-head terminal (part of 14B060)
19 — CMS connector (right side) (part of 14B060)
20 — Transmission vehicle harness connector (part of 14B060)
21 W711953 Generator B+ terminal nut
22 — Generator B+ terminal (part of 14B060)
23 W702841 Battery cable harness-to-valve cover bracket nut
24 — Battery cable harness-to-valve cover bracket (part of 14B060)
25 — Generator connector (part of 14B060)
26 — A/C compressor connector (part of 14B060)
27 — Electronic Power Assist Steering (EPAS) connector (part of 14B060)

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Disconnect the battery. For additional information, refer to Battery Disconnect in this section.
  1. Open the Battery Junction Box (BJB) cover, remove the nut and position the BJB terminal aside.
  1. Remove the bolts and position the battery ground cable body terminals aside.
  1. Remove the battery cable terminal nut from the terminal and position the battery cable terminal aside.
  1. Disconnect the engine control harness connector and the PCM harness connector.
  1. Detach the battery cable harness locators from the RH strut tower and fender area.
  1. Remove the starter solenoid terminal cover.
  1. Remove the nut and position the starter solenoid positive cable terminal aside.
  1. Remove the nut and position the starter solenoid wire terminal aside.
  1. Remove the nut and position the battery cable harness bracket-to-engine aside.
  1. Disconnect the RH and LH Catalyst Monitor Sensor (CMS) connectors.

Automatic transmission

  1. Disconnect the transmission vehicle harness connector

Manual transmission

  1. Disconnect the reverse switch connector from the transmission.
  1. Disconnect the Output Shaft Speed (OSS) sensor connector from the transmission.

All vehicles

  1. Detach the battery cable harness locators from the transmission.
  1. Remove the bolt from the rear of the RH cylinder head and position the battery ground cable-to-head terminal aside.
  1. Position aside the generator B+ terminal cover, remove the nut and position the generator B+ terminal aside.
  1. Disconnect the generator connector.
  1. Remove the nut and position the battery cable harness-to-valve cover bracket aside.
  1. Detach the battery cable harness locator at the valve cover.
  1. Disconnect the A/C compressor connector.
  1. Detach the battery cable harness locator at the A/C compressor.
  1. Disconnect the Electronic Power Assist Steering (EPAS) connector.
  1. Detach the battery cable harness locators from the EPAS .
  1. Remove the battery cables.
  1. To install, reverse the removal procedure.
