SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Antenna — AM/FM

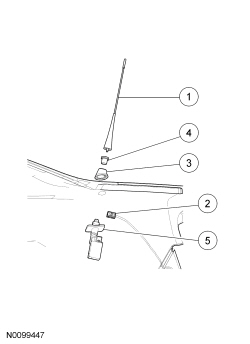

Item Part Number Description
1 18813 AM/FM antenna mast
2 — AM/FM antenna electrical connector (part of 14A005)
3 18A927 AM/FM antenna base cover
4 18865 AM/FM antenna retainer
5 18936 AM/FM antenna

Removal and Installation

  1. Remove the AM/FM antenna mast.
  1. Pull back the RH side of the luggage compartment trim.
  1. Disconnect the AM/FM antenna electrical connector.
  1. Remove the retainer, the base cover, and the AM/FM antenna.
  1. To install, reverse the removal procedure.
