SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Antenna — Satellite Radio

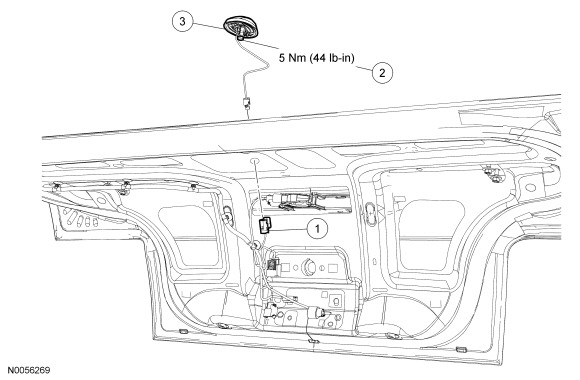

Item Part Number Description
1 — Satellite radio antenna cable electrical connector (part of 14A005)
2 — Satellite radio antenna bolt (part of 18C964)
3 10E893 Satellite radio antenna

Removal and Installation

  1. Remove the pin-type retainers and the luggage compartment trim.
  1. Remove the satellite radio antenna bolt and retainer cage.
  1. Remove the satellite radio antenna.
  1. To install, reverse the removal procedure.
