SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Audio Amplifier
Removal and Installation
Remove the LH lower A-piller trim panel. For additional information, refer to
Section 501-05
.

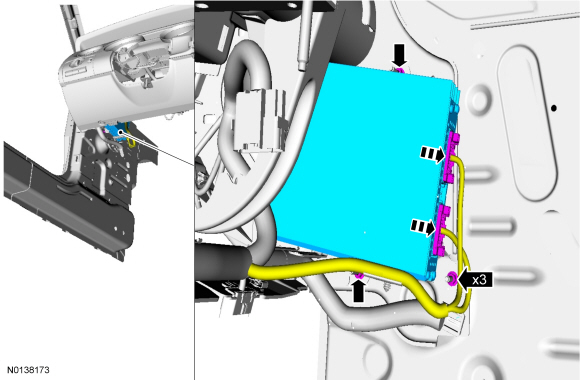

Remove the 3 nuts and the audio amplifier.
Disconnect the 2 electrical connectors.
To install, tighten to 3 Nm (27 lb-in).
To install, reverse the removal procedure.
