SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Audio Input Jack

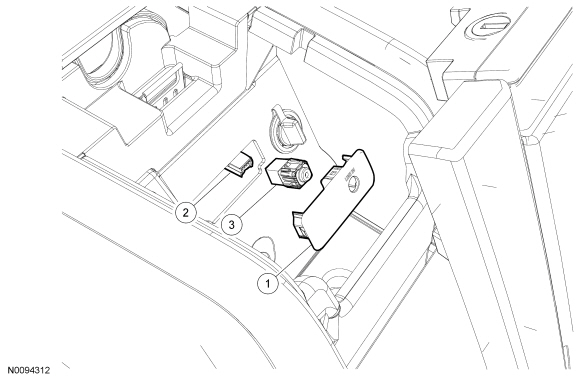

NOTE: Without the SYNC system shown, with the SYNC system similar.


Item Part Number Description
1 1238 Audio input jack bezel
2 — Audio input jack electrical connector (part of 14401)
3 19A164 Audio input jack

Removal and Installation

  1. Open the floor console rear stowage bin door.
  1. Using a suitable tool such as a trim tool, remove the audio input jack bezel by prying straight rearward.
  1. Release the tabs and remove the audio input jack.
  1. To install, reverse the removal procedure.
