SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Front Controls Interface Module (FCIM)

NOTE: Without navigation shown, with navigation similar.


Item Part Number Description
1 W707628-S Front Controls Interface Module (FCIM) screws (15 required with navigation, 11 required without navigation)
2 18842 FCIM

Removal and Installation

NOTE: The floor console upper trim panel does not need to be removed.

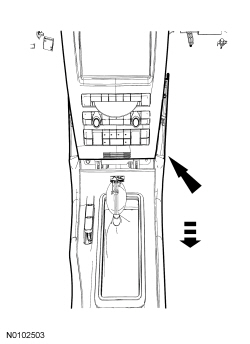

  1. NOTE: For vehicles equipped with an automatic transmission, the selector lever bezel must be removed by prying upward on the bezel with a non-marring tool.

    Pry the floor console upper trim panel upward, then backward to disengage the clips.
  1. Remove the 2 screws from the bottom of the center Instrument Panel Cluster (IPC) finish panel.
  1. Pry center of the instrument finish panel out.
  1. Disconnect the Front Controls Interface Module (FCIM) electrical connector.
  1. Remove the 15 screws (with navigation) or 11 screws (without navigation) and the FCIM .
  1. To install, reverse the removal procedure.
