SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Front Display Interface Module (FDIM)

NOTE: With navigation shown, without navigation similar.

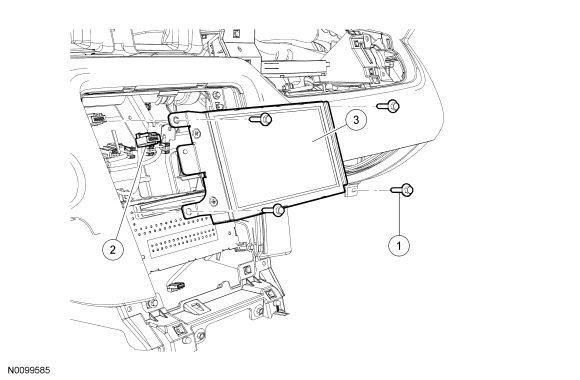

Item Part Number Description
1 W705314-S Front Display Interface Module (FDIM) screws (4 required)
2 — FDIM electrical connectors (Part of 14401)
3 10D885/10E899 FDIM (without navigation/with navigation)

Removal and Installation

  1. NOTE: Module configuration is required when a new Front Display Interface Module (FDIM) is being installed.

    Upload the FDIM configuration information to the scan tool. For additional information, refer to Section 418-01 to carry out Programmable Module Installation (PMI).
  1. Remove the center instrument panel finish panel. For additional information, refer to the Section 501-12 .
  1. Remove the 4 screws and the FDIM .
  1. To install, reverse the removal procedure.
