SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Global Positioning System Module (GPSM)

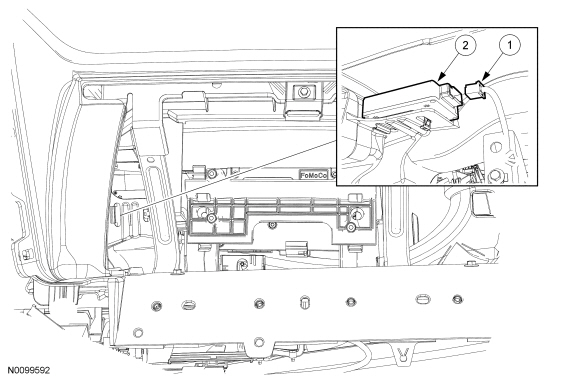

NOTE: The view is shown from under the instrument panel.


Item Part Number Description
1 — Global Positioning System Module (GPSM) electrical connector (part of 14401)
2 10E893 GPSM

Removal and Installation

NOTE: Prior to replacement of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Section 418-01 .

  1. NOTE: This step is necessary only if the GPSM is being replaced. Upload the module configuration information from the GPSM into the scan tool. For additional information, refer to Section 418-01 .

  1. Lower the glove compartment door completely.

  1. NOTE: The GPSM can be accessed through the glove compartment opening.

    Disconnect the GPSM electrical connector.
  1. Remove the GPSM by pushing back on the locking tab.
  1. To install, reverse the removal procedure.
