SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Microphone

Removal and Installation

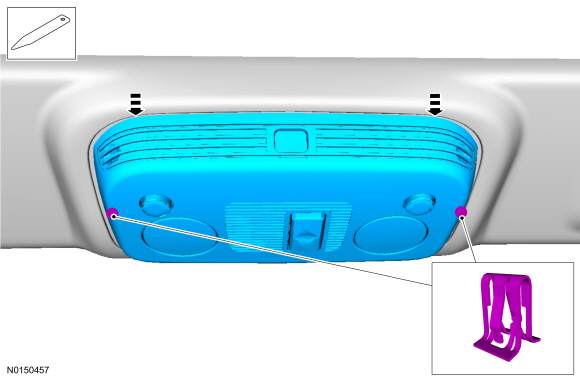

  1. Lower the overhead console.
  1. Remove the microphone from the overhead console.
    1. Release tabs.

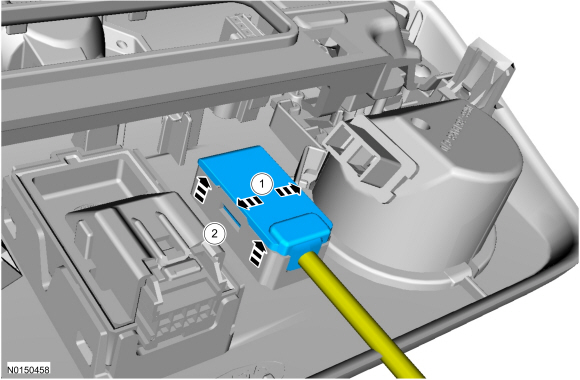

    1. Remove the microphone, disconnect the electrical connector.
  1. To install, reverse the removal procedure.
