SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Speaker — Door
Removal and Installation
Remove the door trim panel. For additional information, refer to
Section 501-05
.

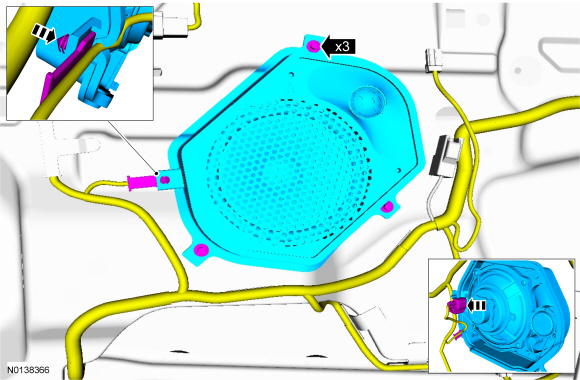

Remove the 3 screws and the door speaker.
Detach the wirining harness push pin.
Disconnect the electrical connector.
To install, reverse the removal procedure.
