SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Speaker — Parcel Shelf

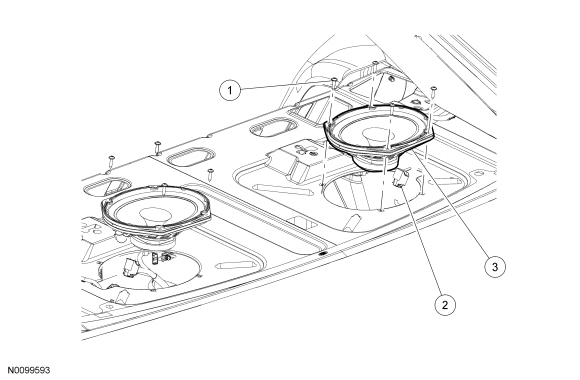

Item Part Number Description
1 W705314 Parcel shelf speaker screws (4 required)
2 — Parcel shelf speaker electrical connector (part of 14A005)
3 18808 Parcel shelf speaker

Removal and Installation

  1. Remove the parcel shelf trim panel. For additional information, refer to Section 501-05 .
  1. Remove the 4 screws and the parcel shelf speaker.
  1. To install, reverse the removal procedure.
