SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Speaker — Quarter Panel

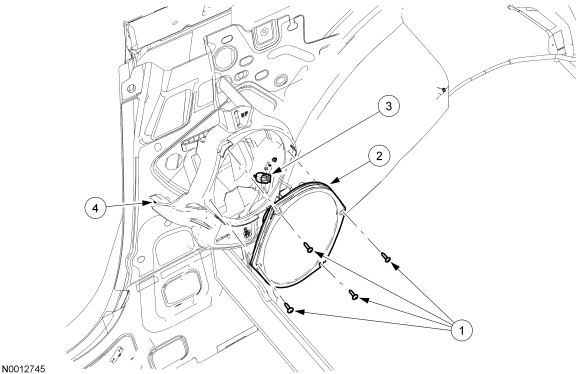

Item Part Number Description
1 W705314 Quarter panel speaker screws (4 required)
2 18808 Quarter panel speaker
3 — Quarter panel speaker electrical connector (part of 14A005)
4 W701930 Quarter panel speaker mounting bracket screws (3 required)

Removal and Installation

  1. Remove the quarter trim panel. For additional information, refer to Section 501-05 .
  1. Remove the 4 screws and the quarter panel speaker.
  1. To install, reverse the removal procedure.
