SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Speaker — Subwoofer

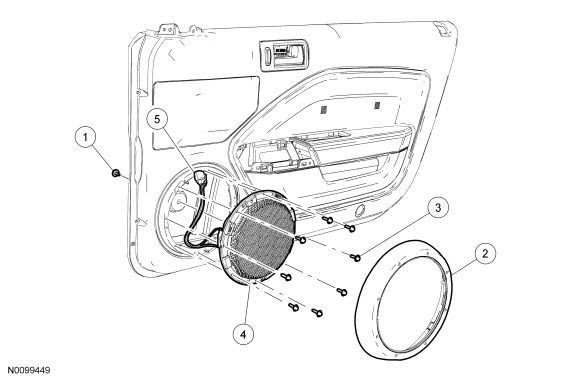

Item Part Number Description
1 W707281 Door subwoofer speaker bolt
2 18978 Door subwoofer speaker grille trim
3 N606674 Door subwoofer speaker screws (8 required)
4 18808 Door subwoofer speaker
5 — Door subwoofer speaker electrical connector (part of door harness)

Removal and Installation

  1. Remove the door trim panel. For additional information, refer to Section 501-05 .
  1. Using a suitable tool such as a trim tool, remove the door subwoofer speaker grille trim by prying it from the door panel.
  1. Remove the door subwoofer speaker bolt.
  1. Remove the 8 screws and the door subwoofer speaker.
  1. To install, reverse the removal procedure.
