SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Speaker Enclosure
Removal and Installation

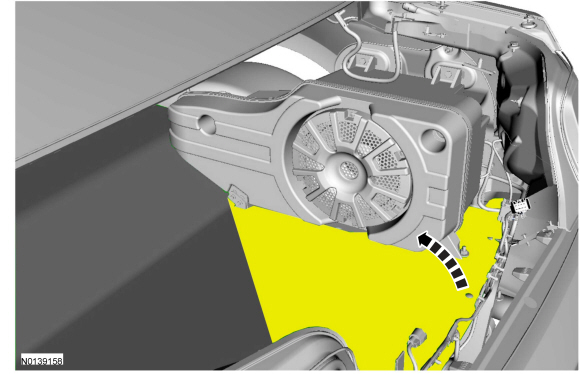

Position the trunk floor mat aside.

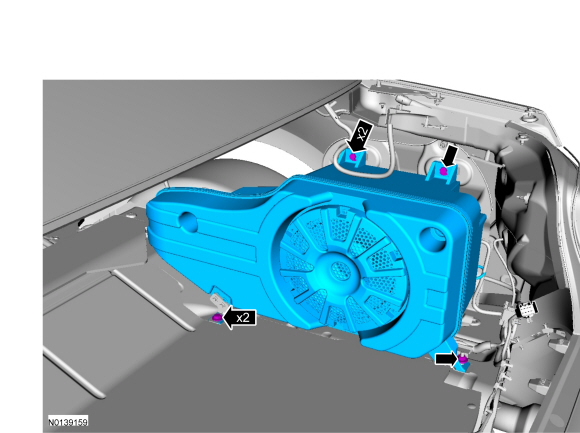

Remove the 2 speaker enclosure bolts, the 2 speaker enclosure nuts and remove the speaker enclosure.
To install, tighten to 11 Nm (97 lb-in).
Disconnect the speaker enclosure electrical connector.
To install, reverse the removal procedure.
