SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

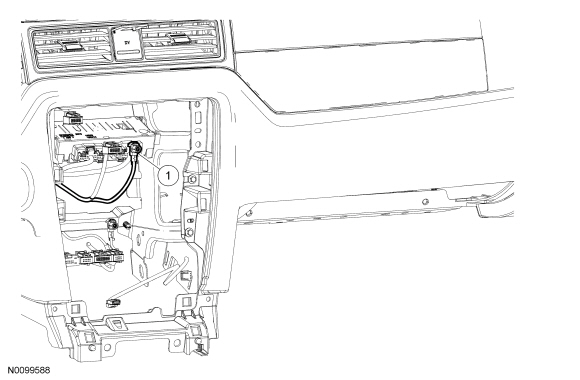

Video Cable
Item
Part Number
Description
1
10E929
Video cable
Removal and Installation
Remove the Audio Front Control Module (ACM). For additional information, refer to
Audio Control Module (ACM)
in this section.
Remove the video cable.
To install, reverse the removal procedure.
Secure the video cable using tape or zip-ties, as necessary.
