SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Fog Lamp

Removal

3.7L vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Section 100-02 .

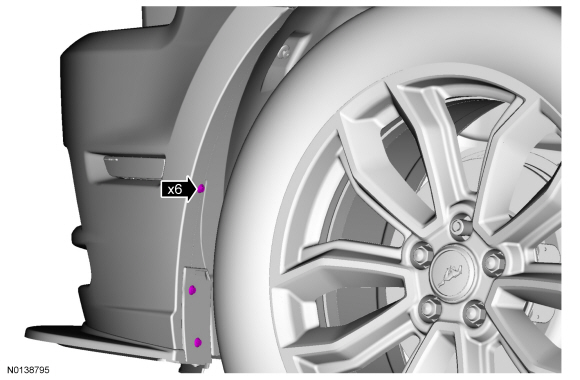

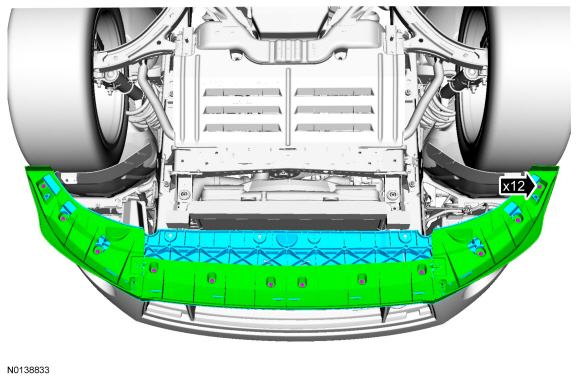

  1. Three on each side.

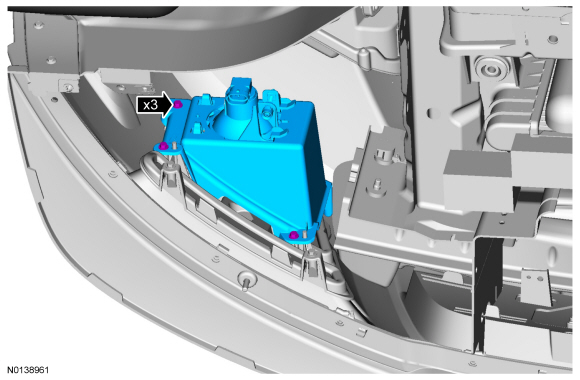

  1. To install, tighten to 1.9 Nm (17 lb-in).

5.0L vehicles

  1. Remove the front bumper cover. Refer to Section 501-19 .

GT500 vehicles

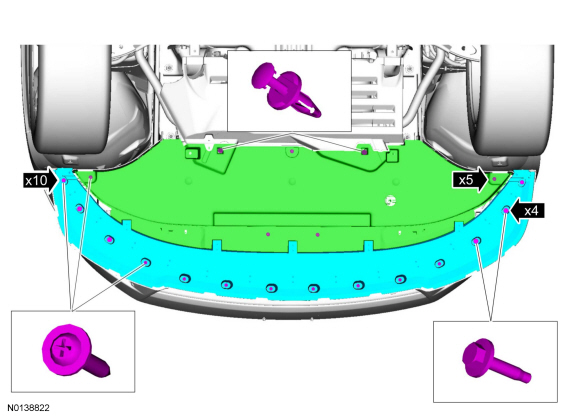

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Section 100-02 .

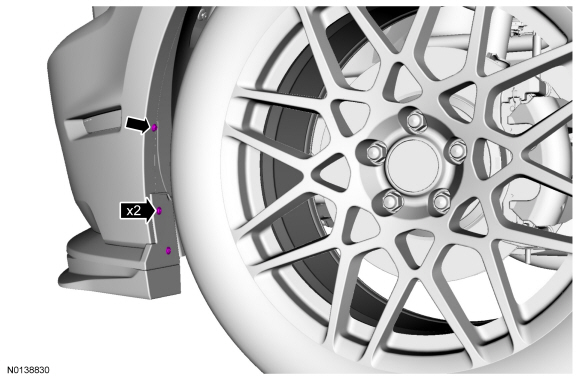

  1. On each side.

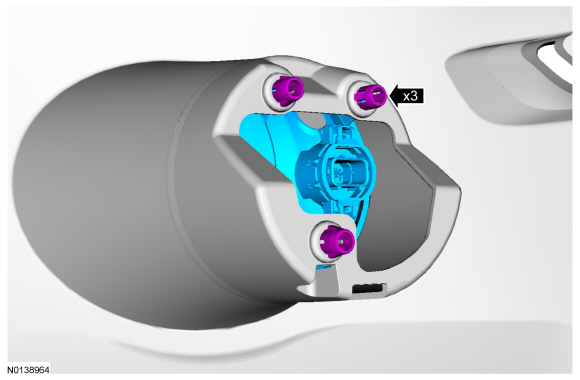

  1. To install, tighten to 3.2 Nm (28 lb-in).

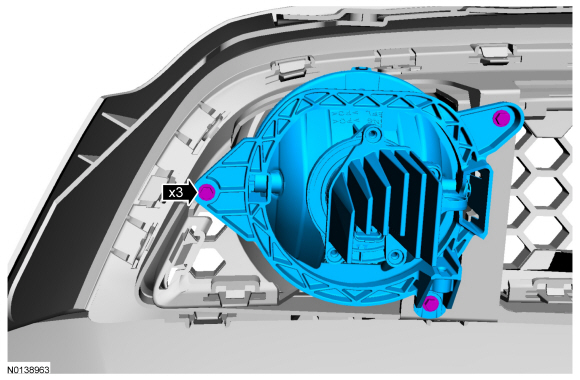

  1. To install, tighten to 3.2 Nm (28 lb-in).

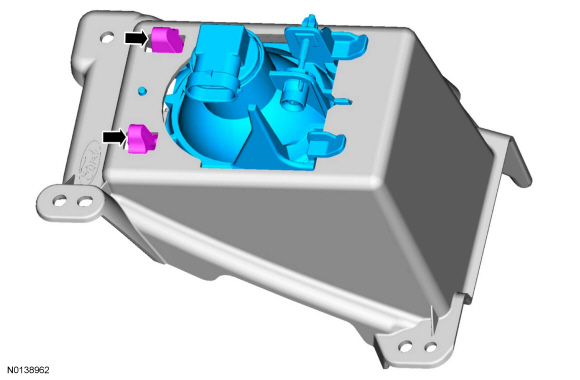

  1. NOTE: Use a 13 mm (0.5 in) diameter tool to collapse the tabs.

Installation

  1. To install, reverse the removal procedure.
