SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Hazard Flasher Lamp Switch

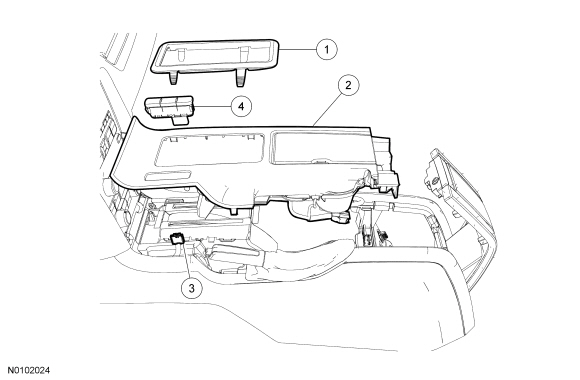

NOTE: Vehicles with automatic transmission shown, manual transmission similar.


Item Part Number Description
1 7E391 Gear shift lever bezel
2 6304567 Floor console finish panel
3 — Hazard flasher lamp switch electrical connector (part of 14401)
4 13D730 Hazard flasher lamp switch

Removal and Installation

  1. For vehicles with an automatic transmission, remove the gear shift lever bezel.
  1. Starting near the storage compartment, grasp and pull up on the floor console trim panel.
  1. Release the tabs and remove the hazard flasher lamp switch from the floor console trim panel.
  1. To install, reverse the removal procedure.
