SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 06/05/2013

Headlamp Assembly

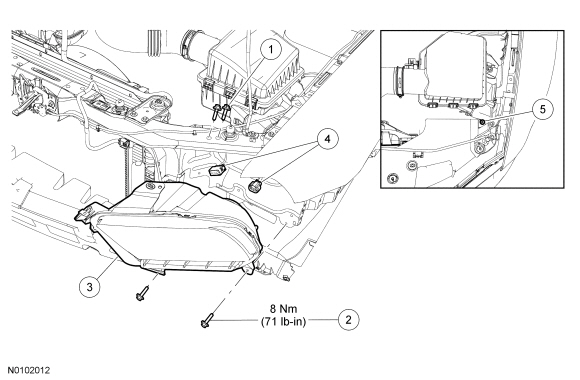

Item Part Number Description
1 7850980 Pin-type retainer
2 W714923 Headlamp assembly bolts (3 required)
3 13008 Headlamp assembly
4 — Electrical connectors (part of 14290)
5 — Headlamp adjustment screw

Removal

  1. Remove the front bumper cover. For additional information, refer to Section 501-19 .
  1. Remove the pin-type retainer.
  1. Remove the 3 bolts and the headlamp assembly.

Installation

  1. For HID headlamps, transfer the ballast and HID bulb to the new headlamp assembly.
  1. To install, reverse the removal procedure.
