SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Headlamp Switch

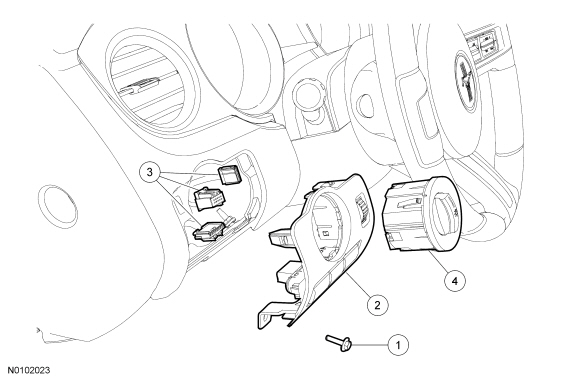

Item Part Number Description
1 705314 Headlamp switch bezel screw
2 7804338 Headlamp switch bezel
3 — Headlamp switch electrical connectors (part of 14401)
4 11654 Headlamp switch

Removal and Installation

  1. Remove the steering column opening trim panel. For additional information, refer to Section 501-12 .
  1. Remove the screw and the headlamp switch bezel.

  1. NOTE: The 3 retaining tabs on the headlamp switch are located at approximately the 3, 6 and 11 o'clock positions when viewed from the front.

    Release the 3 tabs and remove the headlamp switch from the bezel.
  1. To install, reverse the removal procedure.
