SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

High Mounted Stoplamp

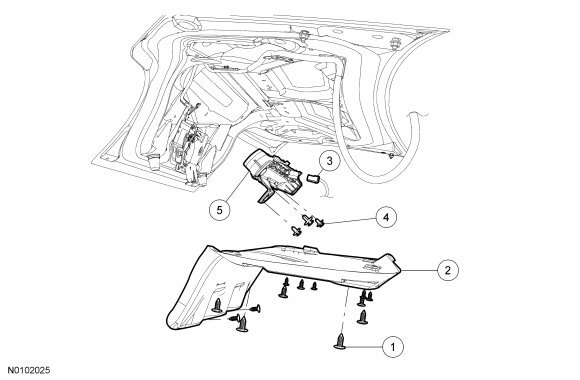

Item Part Number Description
1 — Pushpins (13 required)
2 — Luggage compartment lid trim panel
3 — High mounted stoplamp electrical connector (part of 14A005)
4 — Pin-type retainers (part of 13A613) (3 required)
5 13A613 High mounted stoplamp assembly

Removal and Installation

  1. Remove the 13 pushpins and the luggage compartment lid trim panel.
  1. Remove the 3 pin-type retainers and the high mounted stoplamp.
  1. To install, reverse the removal procedure.
