SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Parking Lamp — Front

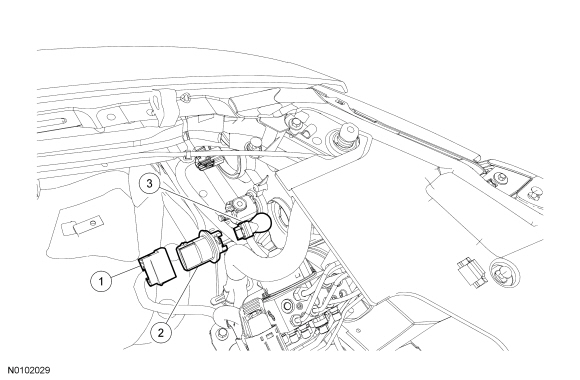

NOTE: Vehicles with halogen headlamps shown, High Intensity Discharge (HID) headlamps similar.

NOTE: Air cleaner shown removed for clarity.


Item Part Number Description
1 — Front parking/turn lamp electrical connector (part of 14290)
2 13411 Front parking/turn lamp bulb holder
3 13466 Front parking/turn lamp bulb

Removal and Installation

  1. For the LH front parking/turn lamp on vehicles equipped with High Intensity Discharge (HID) headlamps, remove the air cleaner. For additional information, refer to Section 303-12 .
  1. Rotate the bulb holder approximately one-eighth turn counterclockwise and remove the front parking/turn lamp bulb from the headlamp assembly.
  1. To install, reverse the removal procedure.
