SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Rear Lamp Assembly
Removal
Remove the rear luggage compartment scuff plate.
Position the luggage compartment side trim panel aside.

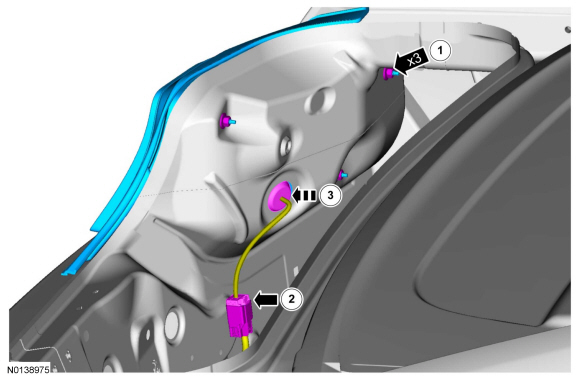

Feed the wiring harness through the rear of the vehicle.
To install, tighten to 6 Nm (53 lb-in).
Installation
To install, reverse the removal procedure.
