2014 Mustang Workshop Manual

SECTION 417-01: Exterior Lighting	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Reversing Lamp Switch

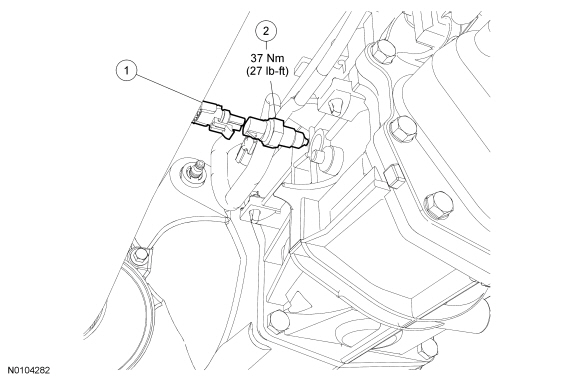

NOTE: T5OD transmission shown, TR3650 transmission similar.

Item	Part Number	Description
1	—	Reversing lamp switch electrical connector (part of 12B637)
2	15520	Reversing lamp switch

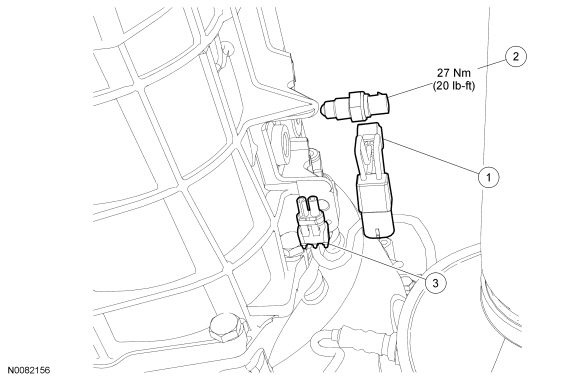

TR6060 Transmission

Item	Part Number	Description
1	—	Reversing lamp switch jumper harness
2	15520	Reversing lamp switch
3	—	Reversing lamp switch electrical connector (part of 12B637)

Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

Disconnect the electrical connector and remove the reversing lamp switch.
- To install, tighten to 37 Nm (27 lb-ft) (T5OD transmission).
- To install, tighten to 27 Nm (20 lb-ft) (TR3650 or TR6060 transmission).

To install, reverse the removal procedure.
