SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Side Marker Lamp — Front

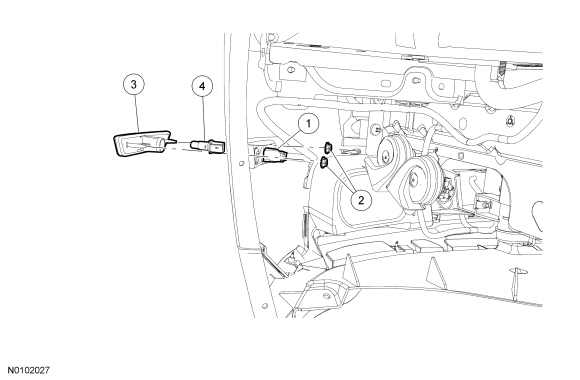

Item Part Number Description
1 — Side marker lamp electrical connector (part of 14290)
2 — Side marker lamp nuts (2 required)
3 15A201 Side marker lamp
4 13411 Side marker lamp bulb socket

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Position the fender splash shield aside.
    1. Remove the lower air deflector-to-splash shield screw.
    1. Remove the 2 fender-to-splash shield screws.
    1. Remove the 2 pin-type retainers and position the fender splash shield aside.
  1. Disconnect the side marker lamp electrical connector.

  1. NOTE: The bulb can be replaced without removing the side marker lamp assembly.

    Remove the 2 nuts and the side marker lamp.
  1. To install, reverse the removal procedure.
