SECTION 419-01B: Anti-Theft — Passive Anti-Theft System (PATS)
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

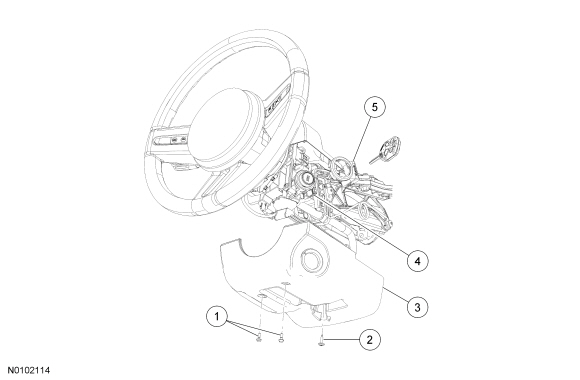

Passive Anti-Theft System (PATS) Transceiver


Item Part Number Description
1 W711585-S Steering column shroud screws (2 required)
2 W711656-S Steering column shroud screw
3 3K512 Lower steering column shroud
4 — Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
5 15607 PATS transceiver

Removal and Installation

  1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel — Exploded View in Section 501-12 .
  1. Remove the 3 screws and the lower steering column shroud.
  1. Disconnect the Passive Anti-Theft System (PATS) transceiver electrical connector.
  1. Release the clips and remove the PATS transceiver.

  1. NOTE: Replacement of the PATS transceiver does not require the Integrated Keyhead Transmitters (IKTs) to be programmed into the Instrument Panel Cluster (IPC) again.

    To install, reverse the removal procedure.
