SECTION 419-03: Cruise Control
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

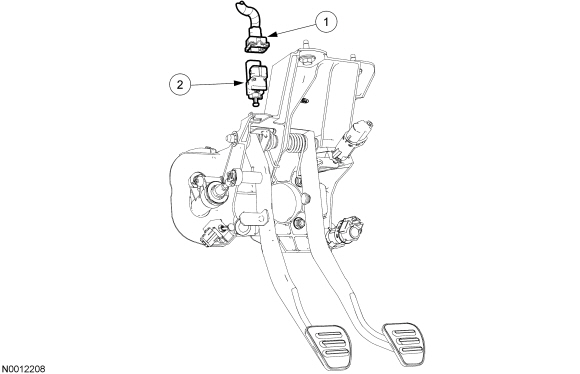

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Cruise control deactivator switch electrical connector |
| 2 | 7C534 | Cruise control deactivator switch |
Removal and Installation
NOTICE: Do not press, pull or otherwise move the pedal while removing or installing the cruise control deactivator switch.
NOTE: When installing the cruise control deactivator switch, it is automatically self-adjusting to the proper position. Do not pull up or push down on the pedal during installation. Initial installation of the cruise control deactivator switch allows for one adjustment. If additional adjustments are necessary, install a new switch.
NOTICE: The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch with the plunger extended (during pedal apply) results in damage to the switch.
Rotate the cruise control deactivator switch counterclockwise 45 degrees and remove the deactivator switch.
