Body Control Module B (BCM-B)

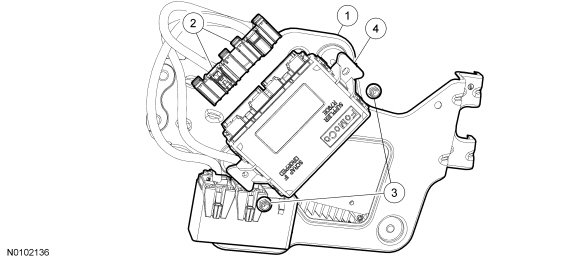

NOTE: Vehicle with navigation shown, vehicle without navigation similar.

Removal

NOTE: Prior to the removal of the module, it is necessary to upload the module configuration information to a scan tool. This information must be downloaded into the new Body Control Module B (BCM-B) after installation. For additional information, refer to Section 418-01 .

1. NOTE: If the BCM-B is being replaced, follow this step. If the BCM-B is not being replaced, go to Step 2.

   Upload the module configuration information from the BCM-B into the scan tool. For additional information, refer to Section 418-01 .

2. From the right side of the luggage compartment, remove the pushpin and position aside the RH luggage compartment trim cover.

3. Remove the BCM-B bracket assembly nuts and position the assembly for access to the BCM-B .
   • Vehicle with navigation remove 4 nuts.
   • Vehicle without navigation remove 3 nuts.

4. Disconnect the 2 BCM-B electrical connectors.

5. Remove the 2 nuts and the BCM-B .

Installation

1. Position the BCM-B on the BCM-B bracket and install the 2 nuts.

2. Connect the 2 BCM-B electrical connectors.

3. Position the BCM-B bracket assembly in place.
   • Vehicle with navigation install the 4 nuts, tightening the rear nuts first.
   • Vehicle without navigation install the 3 nuts, tightening the rear nuts first.

4. Position the RH luggage compartment trim cover and install the pushpin.

5. NOTE: If the BCM-B is being replaced, follow this step. If the BCM-B is not being replaced, the procedure is complete.

   Download the module configuration information from the scan tool into the BCM-B . For additional information, refer to Section 418-01 .

6. Carry out the BCM-B self-test (must include an on-demand self-test) and then repeat the self-test to confirm all BCM-B DTCs have been cleared.
