SECTION 501-02: Front End Body Panels
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

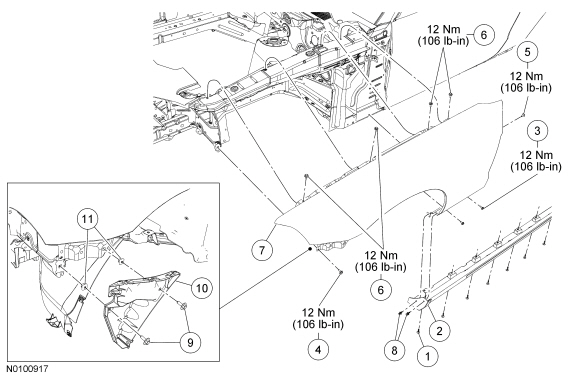

Fender


Item Part Number Description
1 39001B Rocker panel pin-type retainer (4 required)
2 10176 RH/ 10177 LH Rocker panel
3 W505421 Lower fender bolt (2 required)
4 W505421 Front fender bolt
5 W505421 Rear fender bolt
6 W505421 Upper fender bolts (4 required)
7 16005 RH/ 16006 LH Fender
8 W709176 Rocker panel pin-type retainers (2 required)
9 W611103 Bumper cover bracket bolts
10 17D958 RH/ 17D959 LH Bumper cover bracket
11 N811478 Bumper cover bracket push nuts (4 required)

Removal and Installation

Both fenders

  1. Remove the front bumper cover. For additional information, refer to Section 501-19 .
  1. Remove the fender splash shield. For additional information, refer to Fender Splash Shield in this section.

  1. NOTE: The rocker panel pin-type retainers are one-time-use only. New pin-type retainers must be installed.

    Remove the 4 front rocker panel pin-type retainers and position the rocker panel aside.
  1. Remove the 2 lower fender bolts.
  1. Remove the front fender bolt.
  1. Remove the rear fender bolt through the door opening.
  1. Remove the front bumper cover bracket bolts.
  1. Remove the front bumper cover bracket.

Right fender

  1. Disconnect the hood ajar switch.

Both fenders

  1. Remove the 4 upper fender bolts and the fender.
  1. To install, reverse the removal procedure.
