SECTION 501-03: Body Closures
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Door

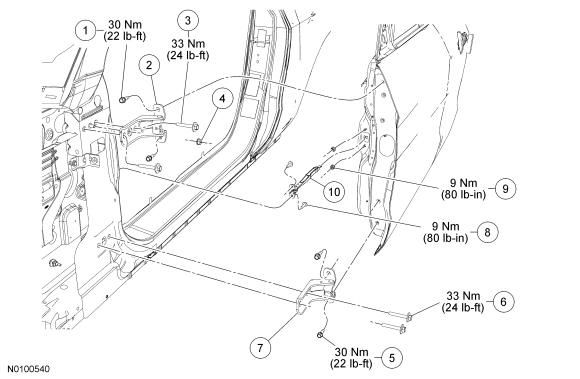

NOTE: Front door shown, rear door similar.


Item Part Number Description
1 W710941 Front door hinge-to-door bolt
2 6322800 Front door upper hinge
3 W706289 Front door hinge-to-body bolt
4 — Front door hinge-to-body nut (part of 6322800)
5 W710941 Front door hinge-to-door bolt
6 W706289 Front door hinge-to-body bolt
7 6322810 Front door lower hinge
8 W706897 Door check arm bolt
9 W520111 Door check arm nut
10 6323552 Door check arm

Removal and Installation

  1. Remove the door check arm bolts.

  1. NOTICE: To minimize the possibility of cross threading, hand start all fasteners during the installation.

    NOTICE: To avoid damaging the door, this step requires the help of an assistant.

    Mark the position of each hinge and remove the hinge-to-door bolts.
  1. Disconnect the door electrical connector at the A-pillar.
  1. Remove the front door.
  1. To install, reverse the removal procedure.
