SECTION 501-05: Interior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Headliner

Coupe

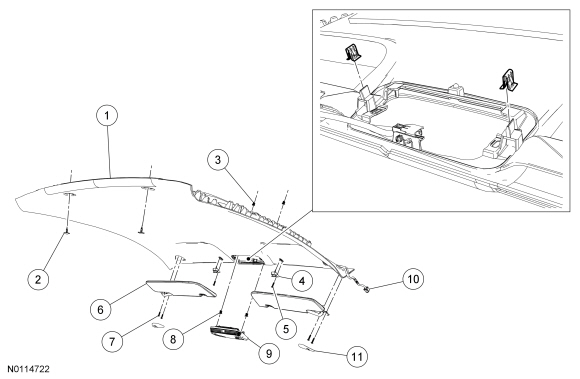

Item Part Number Description
1 6351916 Headliner
2 W714340 Headliner pushpin retainer (2 required)
3 — Headliner retaining clip (2 required) (part of 6351916)
4 04132 Sun visor arm clip (2 required)
5 — Sun visor arm clip screw (2 required) (part of 04132)
6 6304104 LH/ 6304105 RH Sun visor
7 — Sun visor screw (4 required) (part of 6304104 LH/ 6304105 RH)
8 — Overhead console retaining clip (2 required) (part of 519A58)
9 519A58 Overhead console wire harness
10 14334 Overhead console wire harness
11 046B96 RH/ 046B97 LH Sun visor bracket cover


Glass Roof

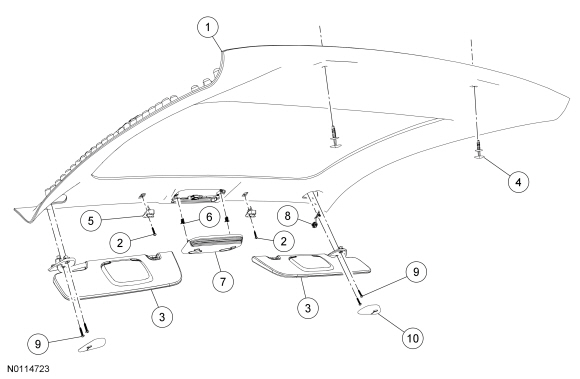

Item Part Number Description
1 51968 Headliner
2 — Sun visor arm clip screw (2 required) (part of 04132)
3 6304105 LH/ 6304104 RH Sun visors (2 required)
4 W714340 Headliner pin-type retainer (2 required)
5 04132 Sun visor arm clip (2 required)
6 — Overhead console clip (part of 519A58)
7 519A58 Overhead console
8 — Headliner electrical connector (part of 51968)
9 — Sun visor screw (4 required) (part of 6304104 LH/ 6304105 RH)
10 046B96 RH/ 046B97 LH Sun visor bracket cover

Removal and Installation

  1. Remove the quarter window trim panel. For additional information, refer to Quarter Window Trim Panel in this section.
  1. Remove the LH and RH A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel in this section.
  1. Remove the sun visor bracket covers.
  1. Remove the 6 sun visor screws, the 2 sun visors and the 2 sun visor arm clips.
  1. Remove the overhead console. For additional information, refer to Section 501-12
  1. Remove the 2 headliner pin-type retainers.
  1. Disconnect the headliner electrical connector and remove the headliner.

  1. NOTE: A new headliner will need to be installed if the headliner is folded during removal or installation.

    To install, reverse the removal procedure.
