SECTION 501-05: Interior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Quarter Trim Panel — Convertible

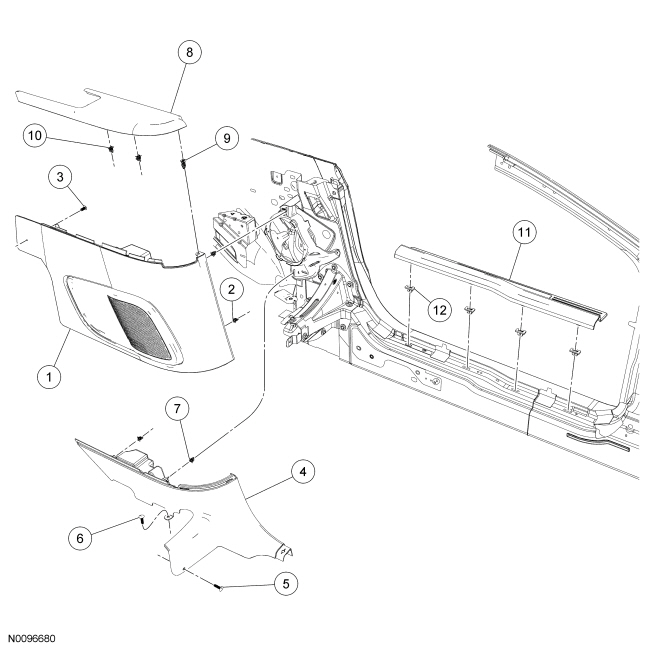

Item Part Number Description
1 31113 LH/ 31112 RH Upper quarter trim panel
2 — Upper quarter trim panel retainer (2 required) (part of 31113 LH/ 31112 RH)
3 N807154 Upper quarter trim panel pushpin
4 31013 LH/ 31012 RH Lower quarter trim panel
5 W709002 Lower quarter trim panel pushpin
6 W706544 Lower quarter trim panel pushpin
7 — Lower quarter trim panel retainer (2 required) (part of 31013 LH/ 31012 RH)
8 13209 LH/ 13208 RH Upper quarter trim panel cap
9 W713508 Upper quarter trim panel cap 2-stage retainer
10 — Upper quarter trim panel cap retainer (2 required) (part of 13209 LH/ 13208 RH)
11 13201 LH/ 13200 RH Door scuff trim plate
12 — Door scuff trim plate clip (4 required) (part of 13201 LH/ 13200 RH)

Removal and Installation

  1. Remove the door scuff plate. For additional information, refer to Scuff Plate Trim Panel in this section.

  1. NOTICE: To avoid damage to the upper quarter trim panel cap, remove any retaining clips from the body and attach them to the upper quarter trim panel cap before installing.

    NOTE: Remove and discard the upper quarter trim panel cap 2-stage high-retention retaining clip.

    Remove the upper quarter trim panel cap by lifting upward to release the first stage of the upper quarter trim panel cap 2-stage high retention retaining clip and the secondary retaining clip. Using suitable pliers, release the second stage of the 2-stage high-retention retaining clip and remove the upper quarter trim panel cap.
  1. Remove the rear seat cushion. For additional information, refer to Section 501-10 .

  1. NOTICE: To avoid damage to the quarter trim panel, remove any retaining clips from the body and attach them to the quarter trim panel.

    NOTE: This procedure must be performed with the roof up, in order to access the rear pushpins.

    Remove the upper quarter trim panel, pushpin retainer and quarter trim panel.

  1. NOTICE: To avoid damage to the quarter trim panel, remove any retaining clips from the body and attach them to the quarter trim panel.

    Remove the 2 pushpin retainers and the lower quarter trim panel.
  1. To install, reverse the removal procedure.
